WATTS®

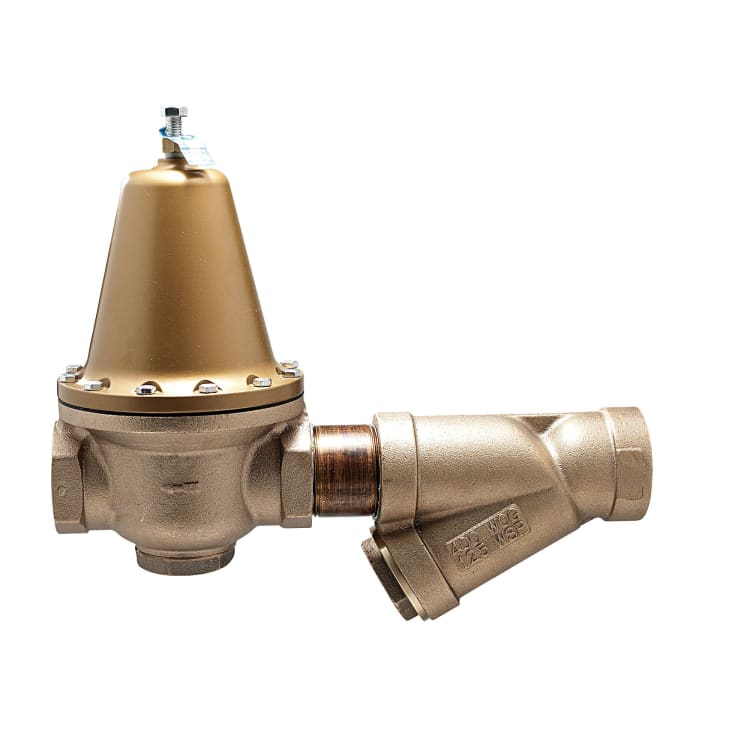

WATTS® 0298617 LFN223BS High Capacity Pressure Reducing Valve, 3 in, FNPT Inlet with Strainer x FNPT Outlet, 300 psi Working, Copper Silicon Alloy Body

1187957 MFG #: 0298617
$15,740.00 / ea
WATTS® 0298617 LFN223BS High Capacity Pressure Reducing Valve, 3 in, FNPT Inlet with Strainer x FNPT Outlet, 300 psi Working, Copper Silicon Alloy Body
  • Body Material: Copper Silicon Alloy
  • Domestic/Import: Domestic
  • End Style: FNPT Inlet with Strainer x FNPT Outlet
  • Inlet to Outlet Length: 10-1/2
  • Media: Water
  • Nominal Size: 3
  • Pressure Range: 25 to 75
  • Series: LFN223BS
  • Softgoods Material: Reinforced Buna-N® Diaphragm
  • Temperature Rating: 33 to 160
  • Top to Inlet Center: 12-3/4
  • Type: High Capacity

WATTS® Pressure Reducing Valve, High Capacity, Series: LFN223BS, 3 in Nominal, FNPT Inlet with Strainer x FNPT Outlet, 300 psi Working, 33 to 160 deg F, Media: Water, 10-1/2 in Inlet to Outlet Length, 12-3/4 in Top to Inlet Center, Copper Silicon Alloy Body, Reinforced Buna-N® Diaphragm

This 3 in super capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy construction, bypass to control thermal expansion pressure, FNPT inlet with strainer by FNPT threaded outlet, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for super capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi.

QTY
Add to List
  • Features
  • Enlarged diaphragm, spring cage and seat orifice for super capacity performance
  • Bypass to control thermal expansion pressure
  • Serviceable in-line
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
  • 25 to 75 psi adjustable reduced pressure range
  • 50 psi standard reduced pressure setting
  • Standard/Approvals: ASSE 1003, IAPMO Listed, ISO 9001-2008 Certified, NSF 61-G, UPC Listed, US Green Building Council Member
