Honeywell

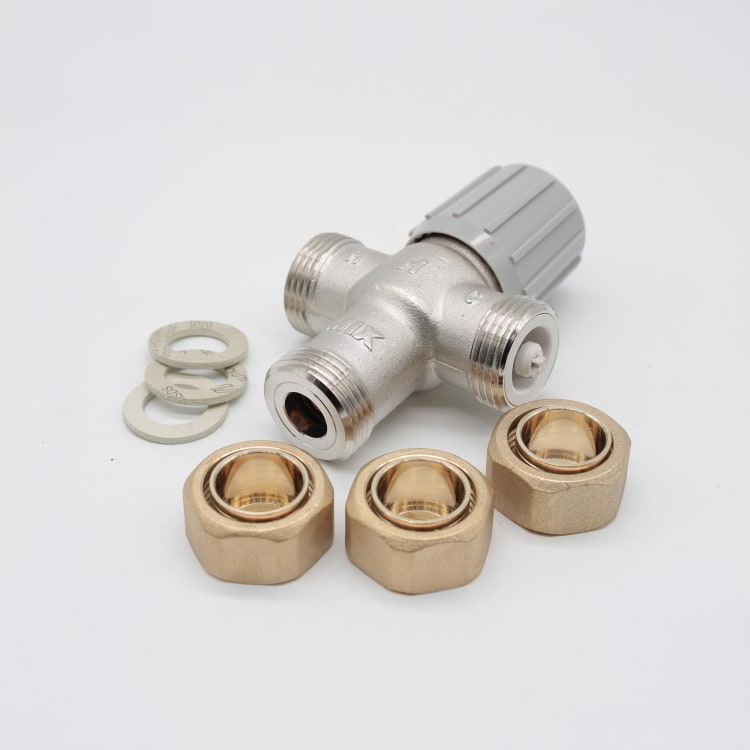

Honeywell AM101-US-1LF/U AM-1 Adjustable Thermostatic Mixing Valve, 3/4 in, Union C, 150 psi, 0.5 gpm, Brass Body, Domestic

1184967 MFG #: AM101-US-1LF/U
$355.77 / ea
Honeywell AM101-US-1LF/U AM-1 Adjustable Thermostatic Mixing Valve, 3/4 in, Union C, 150 psi, 0.5 gpm, Brass Body, Domestic
  • Body Material: Brass
  • Domestic/Import: Domestic
  • End Style: C Union
  • Finish: Nickel Plated
  • Flow Capacity: 0.5 gpm
  • Inlet to Outlet Length: 4.9
  • Media: Water
  • Nominal Size: 3/4
  • Pressure Rating: 150
  • Series: AM-1
  • Softgoods Material: EPDM O-Ring
  • Temperature Rating: 70 to 145
  • Type: Adjustable

Honeywell No Lead Thermostatic Mixing Valve, Adjustable, Series: AM-1, 3/4 in Nominal, Union C, 150 psi, 70 to 145 deg F, 0.5 gpm Flow, Media: Water, 4.9 in Inlet to Outlet Length, Brass Body, EPDM O-Ring, Nickel Plated, Domestic

Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.

QTY
Add to List
  • Features
  • Features dual purpose mixing or diverting values
  • Offers constant water temperature under changing operating conditions
  • Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
  • Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
  • Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
  • Tamper resistant design with nickel plated brass construction and EPDM o-rings
  • Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
  • The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average
  • Straight-through (hot and cold at the same level)
  • Teflon® coated, nickel plated low lead brass body
  • Teflon® coated low lead brass shuttle
  • Standard/Approvals: ASSE 1017, CSA Certified, IAPMO listed
  • WARRANTY: 1 Year Limited
