LEGEND

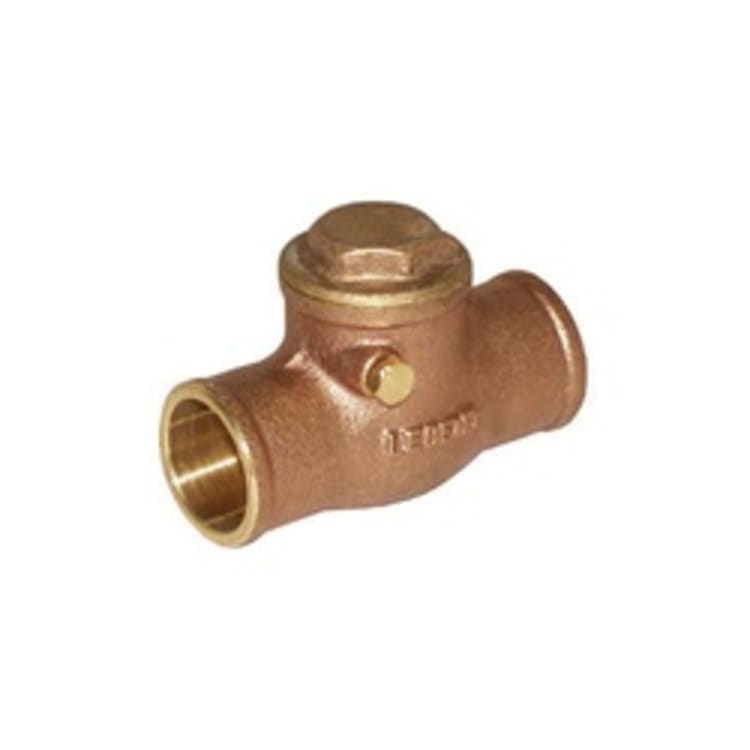

LEGEND 105-203 S-451 Swing Check Valve, 1/2 in, C, Cast Brass Body, Import

16598 MFG #: 105-203
$15.59 / ea
LEGEND 105-203 S-451 Swing Check Valve, 1/2 in, C, Cast Brass Body, Import
  • Body Material: Cast Brass
  • Domestic/Import: Import
  • End Style: C
  • Inlet to Outlet Length: 1.61
  • Low Lead Compliance: No
  • Nominal Size: 1/2
  • Port Type: Full
  • Pressure Rating: 200 psi CWP
  • Series: S-451
  • Top to Inlet Center: 1-1/2
  • Trim Material: Forged Brass

LEGEND Swing Check Valve, Series: S-451, 1/2 in Nominal, C, 200 psi CWP, Full Port, 1.61 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Cast Brass Body, Forged Brass Disc Trim, Import

Legend models T-451/S-451 check valves are constructed of heavy duty brass. They have a screwed cap, swing type disc and integral seat. They prevent backflow while offering full flow performance with a minimum of turbulence or pressure loss. Recommended for residential and commercial applications.

QTY
Add to List
  • Features
  • Durable, full-pattern cast brass body
  • Large, integral seat and disc sealing surfaces
  • Forged brass hinge pin assures smooth, non-binding disc operation
  • T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
  • Standard/Approvals: ANSI/ASME B16.18, ASTM B584 UNS C85700 Body, ASTM B124 UNS C37700 Disc, ISO Certified
  • WARRANTY: 5 Years
