Fernco®

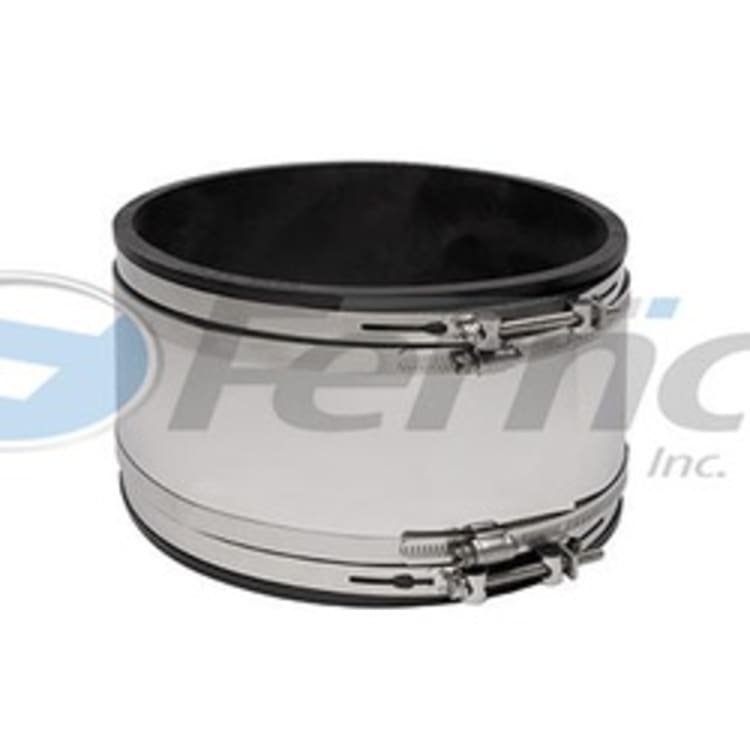

Fernco® 5006-88RC 5006 RC Strong Back Repair Coupling, 8 in, Concrete x Cast Iron/Plastic, 60 Duro Shore A Flexible PVC, Domestic

1071674 MFG #: 5006-88RC
$139.15 / ea
Fernco® 5006-88RC 5006 RC Strong Back Repair Coupling, 8 in, Concrete x Cast Iron/Plastic, 60 Duro Shore A Flexible PVC, Domestic
  • Dimensions: 10.38 in ID x 11.38 in OD
  • Domestic/Import: Domestic
  • End Style: Concrete x Cast Iron/Plastic
  • Fitting/Connector Type: Coupling
  • Length: 5.9
  • Material: 60 Duro Shore A Flexible PVC
  • Nominal Size: 8
  • Pressure Rating: 4.3
  • Series: 5006 RC
  • Temperature Rating: -30 To 140
  • Thickness: 1/2
  • Type: Strong Back

Fernco® Repair Coupling, Strong Back, Series 5006 RC, Fitting/Connector Type: Coupling, 8 in Nominal Size, Concrete to Cast Iron/Plastic, 5.9 in Length, 4.3 psi, Flexible PVC, -30 to 140 deg F, Domestic

Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.

QTY
Add to List
  • Features
  • Strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
  • 60 in-lb installation torque
  • 300 series clamps used
  • Standard/Approvals: ASTM D5926/C1173, ICC ES® PMG, UPC Listed
  • INCLUDES: (2) NBC-17.000-2 Clamp, (1) SRC-37 Shear Ring, (1) 10.250-8.625R Reducer, (1) Insert Bushing
