A.Y. McDonald

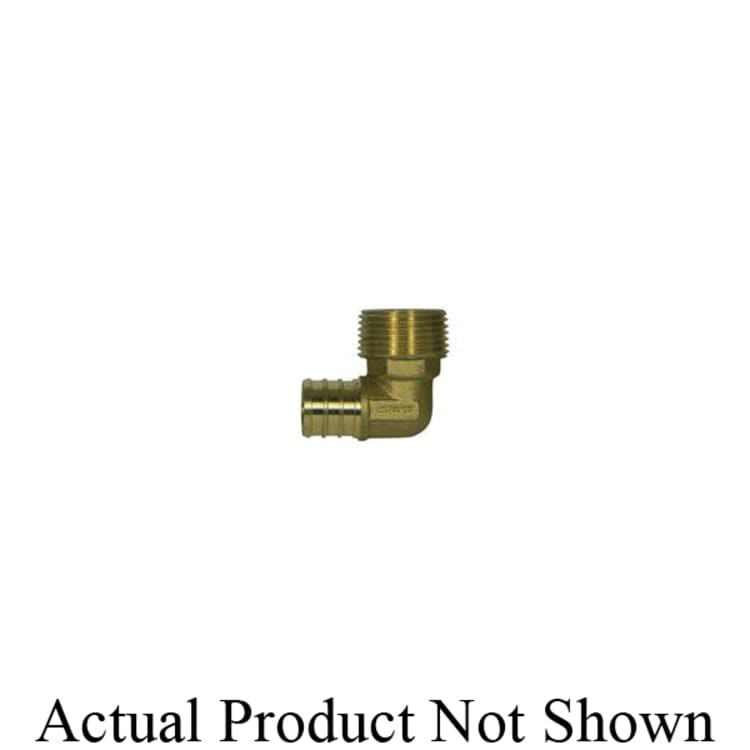

A.Y. McDonald 5423-009 72391 1/2 Male Adapter Elbow, 1/2 in Nominal, PEX x MNPT End Style, Brass, Import

1159422 MFG #: 5423-009
$5.34 / ea
A.Y. McDonald 5423-009 72391 1/2 Male Adapter Elbow, 1/2 in Nominal, PEX x MNPT End Style, Brass, Import
  • Dimensions: 5/8 in OD
  • End Style: PEX x MNPT
  • Fitting/Connector Type: 90 deg Elbow
  • Material: Brass
  • Method of Manufacture: Forged
  • Nominal Size: 1/2
  • Pressure Rating: 160
  • Temperature Rating: 73

A.Y. McDonald Male Adapter Elbow, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal, PEX x MNPT, 160 psi, Forged, Brass, 73 deg F, 5/8 in OD

QTY
Add to List
  • Features
  • Videos
  • 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 210 deg F
  • Excellent resistance vibration
  • All CNC machined ends
  • The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
  • ASTM F876 specification for crosslinked polyethylene (PEX) tubing
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
  • Standard/Approvals: ANSI B1.20.1|ANSI B16.18|ASTM F1807|ASTM F876/F877|NSF/ANSI 61-4/61-2012
  • WARRANTY: Limited
